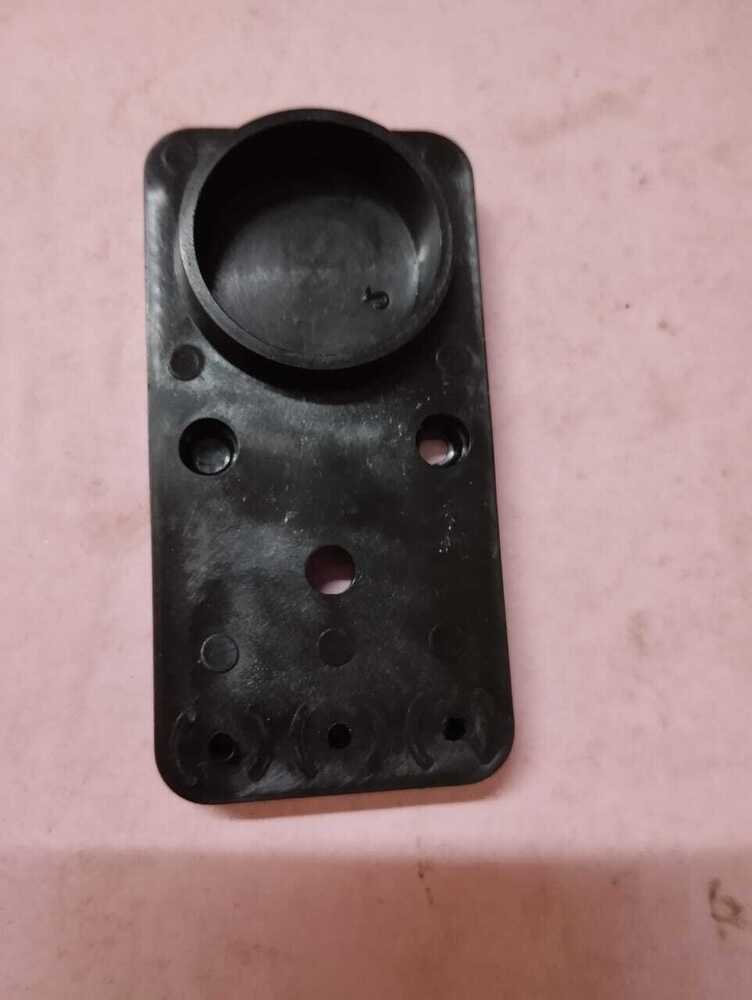

AC Synchronous Motor RC Plate

AC Synchronous Motor RC Plate About

AC synchronous motor's RC plate (Resistor-Capacitor network) is crucial for single-phase operation, acting as a phase-shifting circuit to create the rotating magnetic field needed for starting and running by converting single-phase power into a virtual two-phase supply, enabling instant start/stop, high torque, and precise, constant speed, often with features like bi-directional control and low noise. The RC plate is designed to ensure reliable and efficient motor performance by providing the required phase difference between the windings. It also helps in smooth operation, improved starting characteristics, and stable speed control. Its compact design, dependable functionality, and ability to support consistent motor operation make it an essential component in AC synchronous motors used across various industrial and commercial applications.
